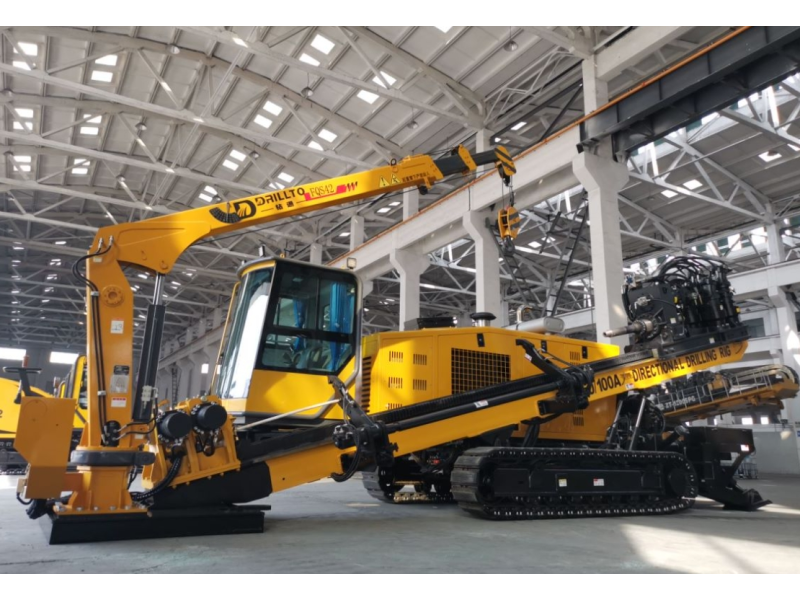

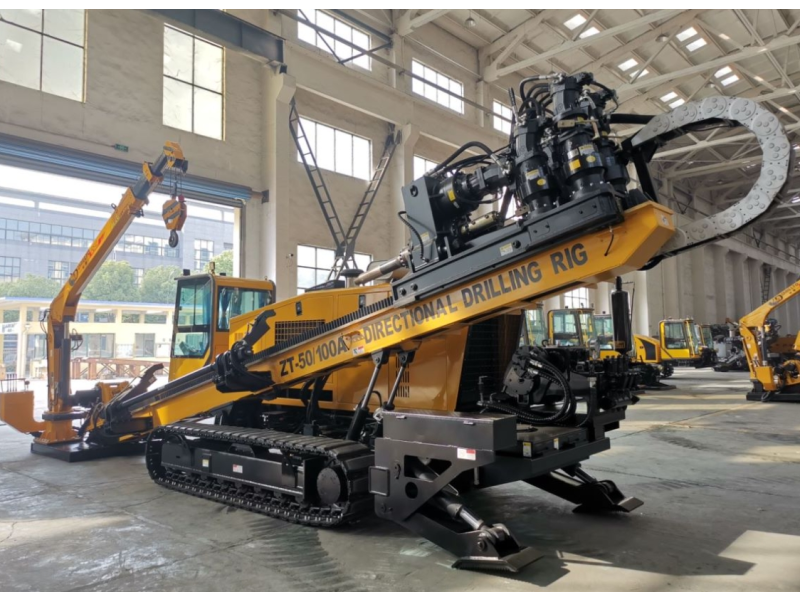

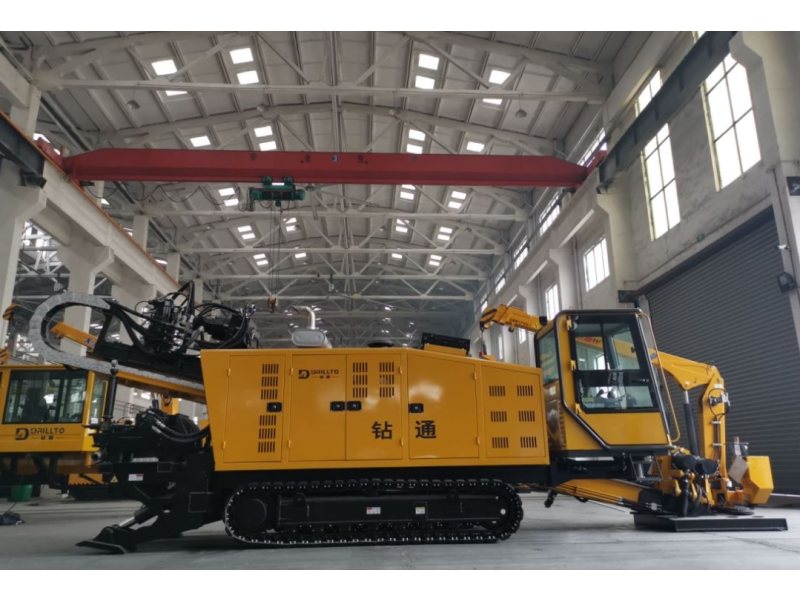

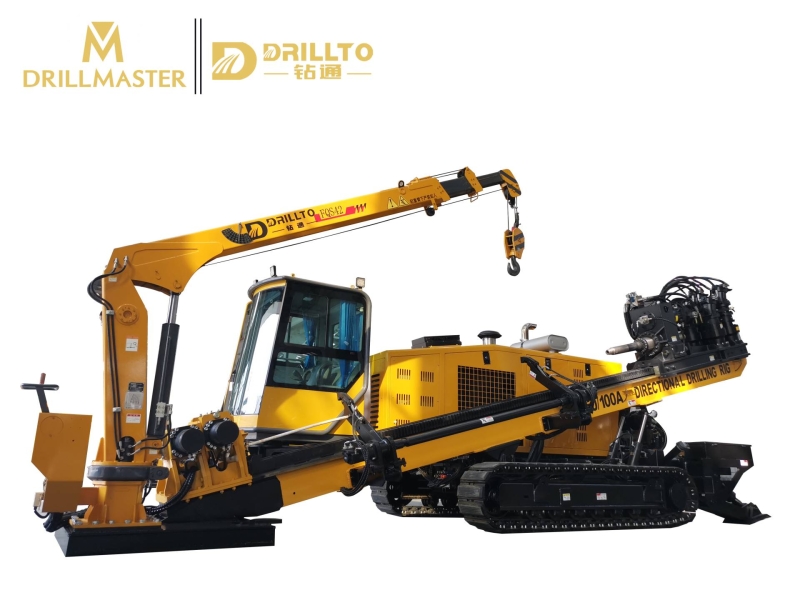

ZT-50/100A

Max torque: 27500N.m
Max pulling/thrusting force: 500/1000kN

Commins engine: 194/2200kW/rpm

CategoriesHDD Machine

Add To Inquiry SEND INQUIRY

Description

Electric direct injection engine with strong power and high fuel consuming effectiveness, high rotary speed, high torque, high efficiency and smooth operation. Rotation and thrusting can work in infinitely variable speed with high transmission effciency, all the systems used are volumetric speed regulation system with low heat.

Parameters

Model	ZT-50/100A
Max torque(N.m)	27500
Rotation speed(pm)	0-160
Max pulling/thrusting force(kN)	500/1000
Pulling speed(m/min)	0-50
Commins engine(kW/rpm)	194/2200
Max mud pump displacement(L/min)	600
Max mud pump pressure(Mpa)	10
Entry angle(degree)	8-20
Walking speed(km/h)	2.5-3.25
Weight(kg)	16500
Dimension(mm)	850023602550
Rod size(mm)	φ89*3000/4500
Reamer size(mm)	φ300-1000

Advantages

The main pump system adopts variable piston pump with high displacement can variable speed continously.
The German Rexrox axial plunger high-speed motor, with strong impact of force resistance, rotary reducer adopts Italian bonfiglioli, with stable performance.
Large-caliber gripper without fear of the large torque, which unscrew rods easily and convenient at worksite.
