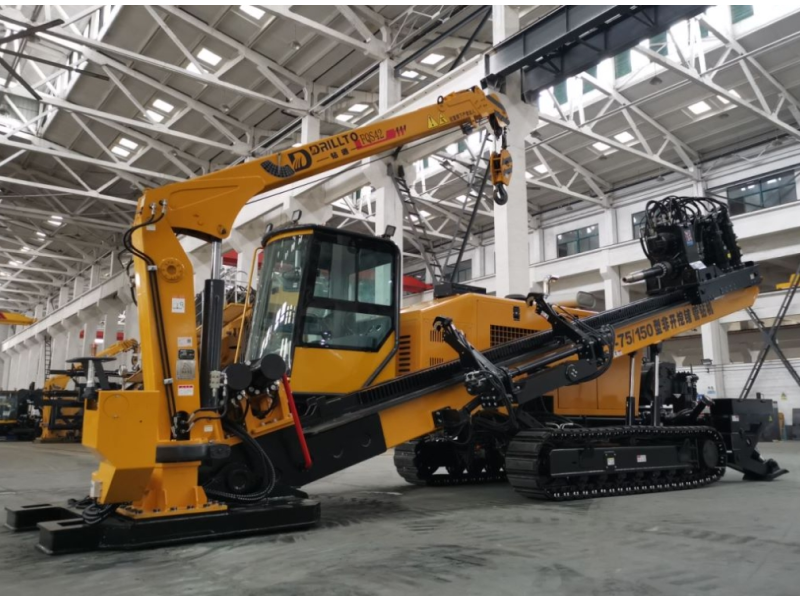

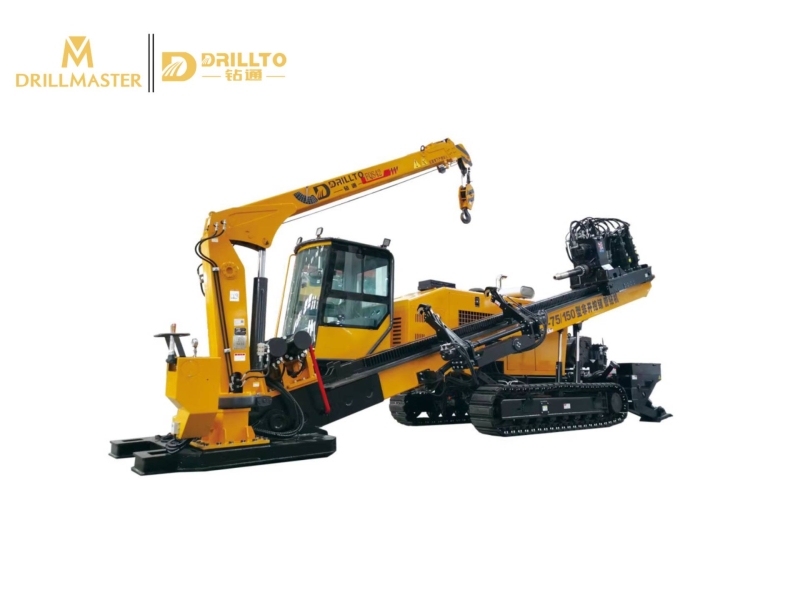

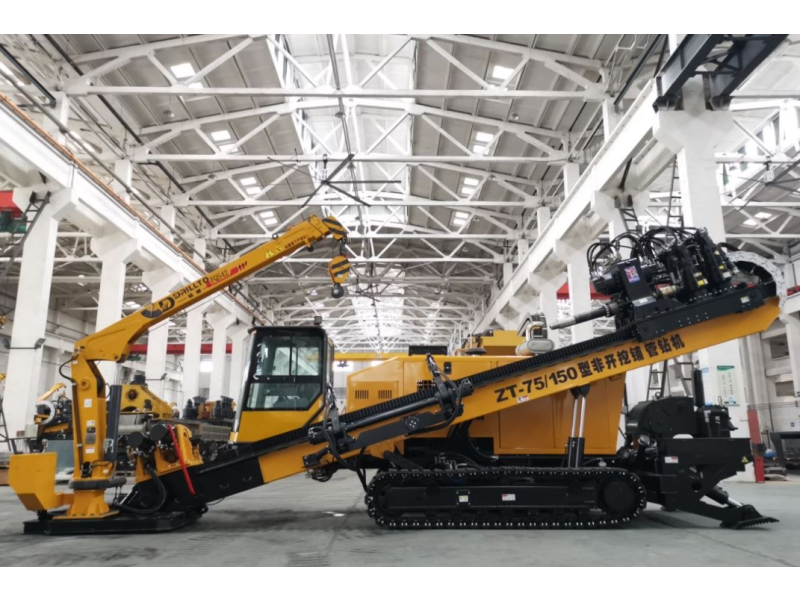

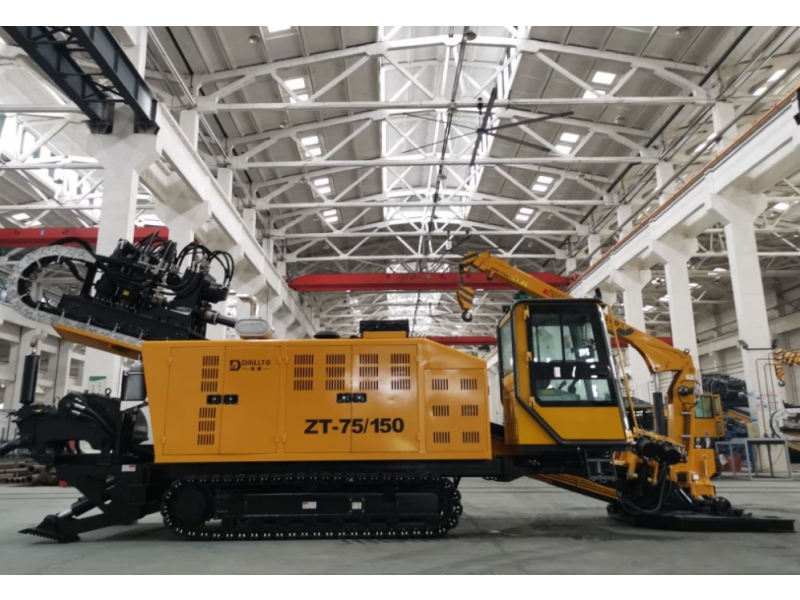

Name: ZT-75/150
SKU: 27
Rating: 5 (1026 reviews)

Description

Closed system and open load sensitive system, which can save energy by using volume speed regulation system, with high transmission efficiency, low heat and low oil temperature.

Parameters

Model	ZT-75/150
Max torque(N.m)	34000
Rotation speed(pm)	0-137
Max pulling/thrusting force(kN)	750/1500
Pulling speed(m/min)	0-40
Commins engine(kW/rpm)	221/2200
Max mud pump displacement(L/min)	600
Max mud pump pressure(Mpa)	10
Entry angle(degree)	10-18
Walking speed(km/h)	2-3
Weight(kg)	18000
Dimension(mm)	950022602500
Rod size(mm)	φ102*4500
Reamer size(mm)	φ300-1000

Advantages

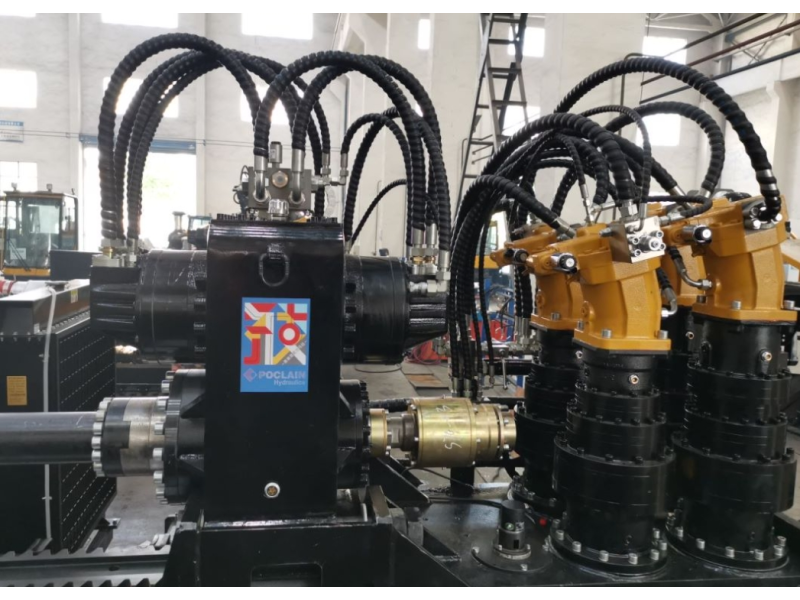

Dual poclain motor three-speed drive, high efficiency, fast speed, three gear optional, all-round shorten the construction period Refine the tubing layout to reduce wear and lag.
The application ofthe four-bar linkage mechanism, the construction angle range is wider, the incidence angle is higher, deeper drilling, suitable for flexible construction scheme.
Rotary cabin, construction display screen set in the front of cabin, can be adjusted up and down and rotatable, good line of sight humanized operation.
