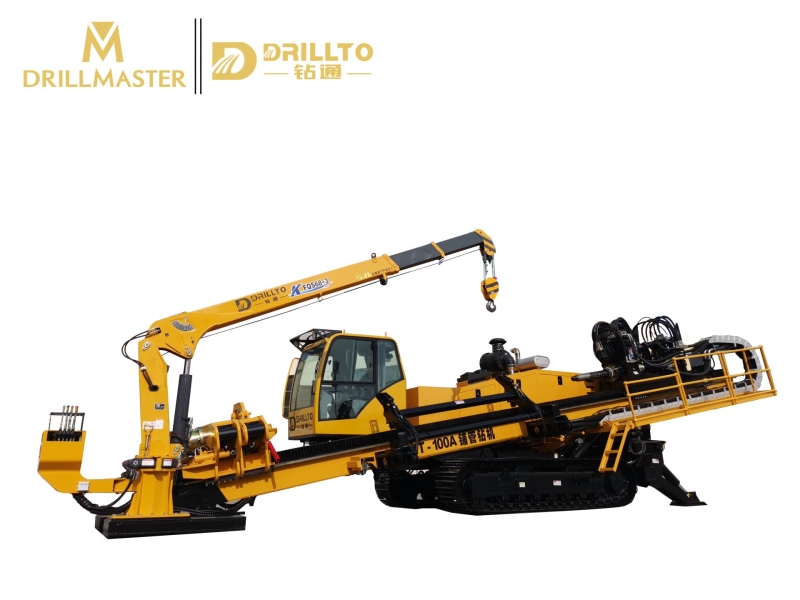

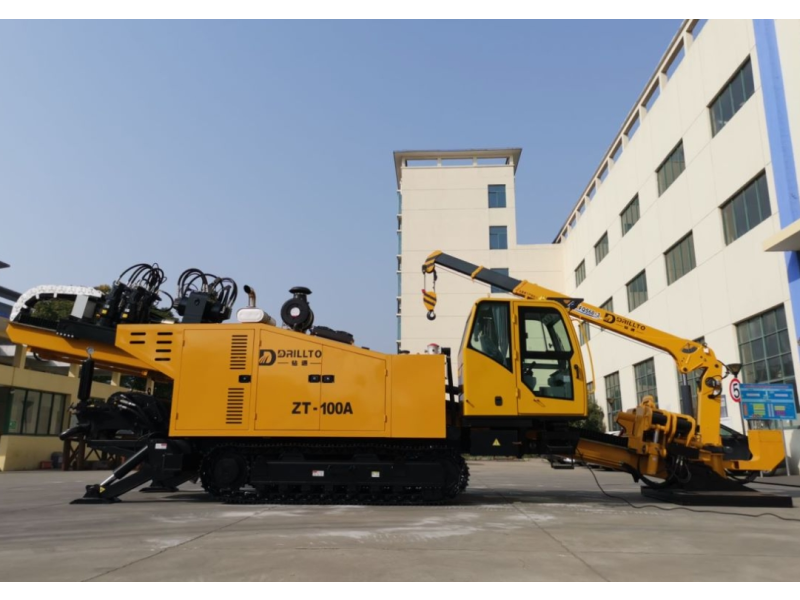

Name: ZT-100A
SKU: 29
Rating: 5 (1028 reviews)

Description

The whole machine performs excellent in all parameters: high speed, high torque, fast push and pull speed, good handling, energy saving and high effciency, intelligent and convenient. The electronic control system adopts Danfoss controller and big display, simple and comfortable human-machine interaction.

Parameters

Model	ZT-100A
Max torque(N.m)	45000
Rotation speed(pm)	0-125
Max pulling/thrusting force(kN)	1000
Pulling speed(m/min)	0-50
Commins engine(kW/rpm)	264/2100
Max mud pump displacement(L/min)	850
Max mud pump pressure(Mpa)	10
Entry angle(degree)	10-22
Walking speed(km/h)	2.5
Weight(kg)	26000
Dimension(mm)	1180026003000
Rod size(mm)	φ114*6000
Reamer size(mm)	φ300-1200

Advantages

Dual Poclain motor three-speed drive, high efficiency, fast speed, three gear optional, all-round shorten the construction period. Refine the tubing layout to reduce wear and lag.
The large displacement hydraulic oil pump design is direct and simple, the system has strong impact in resistance, the design value allowance is large optimized for multi-formation.
Rotary cabin, construction display screen set in the front of cabin, proper setting of control panel, good line of sight, humanized operation.
