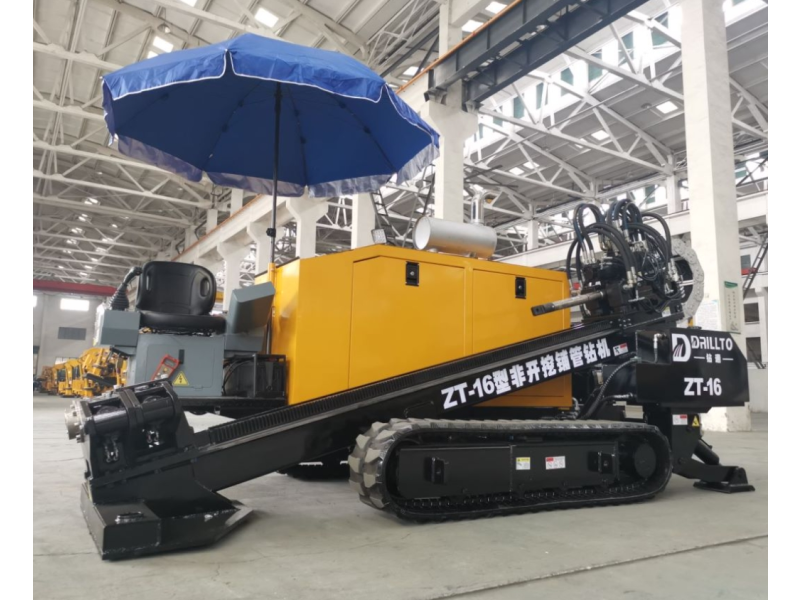

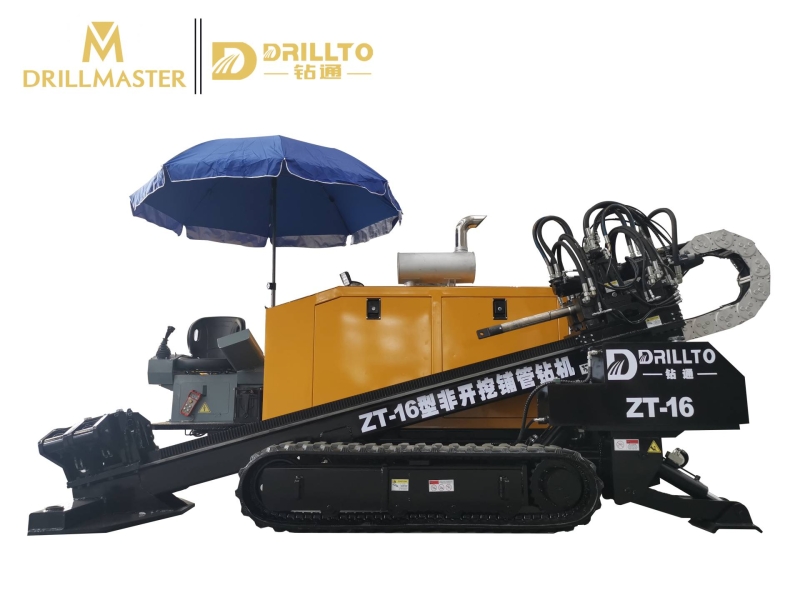

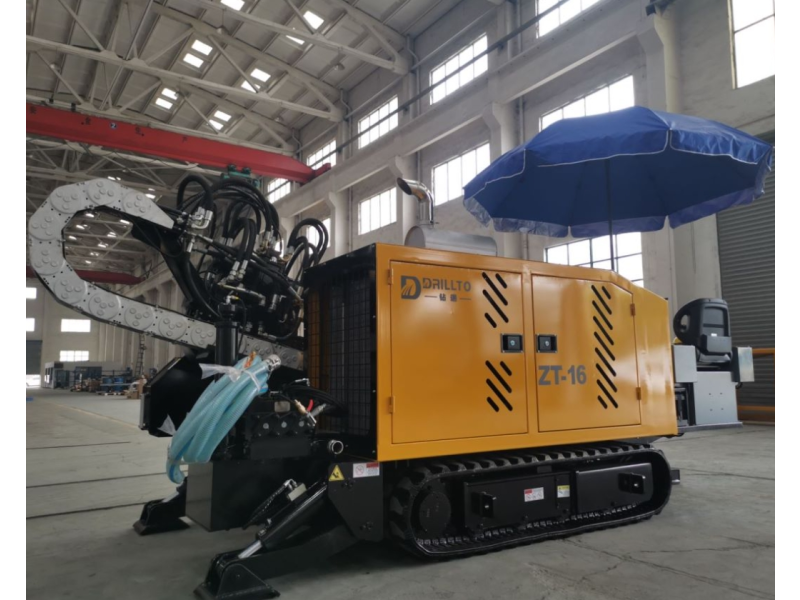

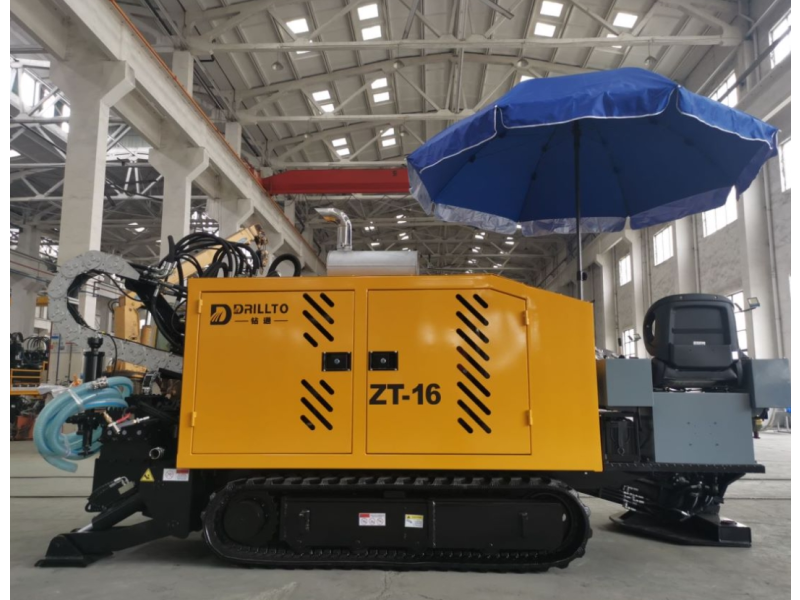

ZT-16

Max torque: 4500N.m
Max pulling/thrusting force: 160kN

Commins engine: 97/2200kW/rpm

CategoriesHDD Machine

Add To Inquiry SEND INQUIRY

Description

The length of ZT-16 drill is only 4.2 meters, compact and short, convenient for transportation. φ60* 2000mm drill rods, stable and reliable, fast drilling for short distance without bending.

Parameters

Model	ZT-16
Max torque(N.m)	4500
Rotation speed(pm)	0-170
Max pulling/thrusting force(kN)	160
Pulling speed(m/min)	0-60
Commins engine(kW/rpm)	97/2200
Max mud pump displacement(L/min)	180
Max mud pump pressure(Mpa)	10
Entry angle(degree)	8-20
Walking speed(km/h)	2.5
Weight(T)	7.5
Dimension(mm)	420020002300
Rod size(mm)	φ60*2000
Reamer size(mm)	φ200-500

Advantages

Rotation and thrusting both use Eaton gerotor motor, stable performance with full power.
Multi-function button handle, comfortable seat and sunshade, user-friendly console design.
Compact structure ofrig design and reasonable tubing layout to reduce tubing wear and tear
